Brand Name: | Texas Instruments |
---|---|
Model Number: | SN74AVC2T244DQMR |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Texas Instruments | Certificate: | / |
---|---|---|---|
Model: | SN74AVC2T244DQMR | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | TI Texas Instruments EMI Filter IC,SN74AVC2T244DQMR EMI Filter IC |
ECAD Module | PCB Symbol,Footprint & 3D Model |
Supply and Demand Status | Balance |
Popularity | Medium |
MSL Level | 1 (Unlimited) |
Manufacturer Pack Quantity | 3,000 |

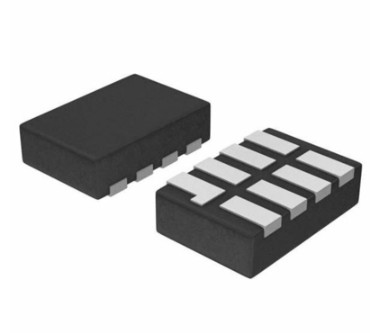

Supplier Device Package | 8-X2SON (1.8x1.2) |
Part Number Series | 74AVC2T244 |
Mounting Style | SMD |
Temperature Range - Operating | -40°C ~ 85°C |
Output Type | Tri-State, Non-Inverted |
Fake Threat In the Open Market | 74 pct. |
Manufacturer Package | 8-XFDFN |
Data Rate | 380Mbps |
Voltage - VCCB | 0.9V ~ 3.6V |
Channels per Circuit | 2 |
Number of Circuits | 1 |
Channel Type | Unidirectional |
Translator Type | Voltage Level |
Packaging | Reel |
Manufacturer | Texas Instruments |
Voltage - VCCA | 0.9V ~ 3.6V |
This 2-bit unidirectional translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 0.9 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 0.9 V to 3.6 V. This allows for low-voltage translation between 0.9-V, 1.2-V, 1.5-V, 1.8-V, 2.5-V and 3.6-V voltage nodes. For the SN74AVC2T244, when the output-enable ( OE) input is high, all outputs are placed in the high-impedance state. The SN74AVC2T244 is designed so that the OE input circuit is referenced to VCCA. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
