Brand Name: | Texas Instruments |
---|---|
Model Number: | LM431AIM3X/NOPB |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Texas Instruments | Certificate: | / |
---|---|---|---|
Model: | LM431AIM3X/NOPB | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | 100dB EMI Filter IC,Surface Mount EMI Filter IC,LM431AIM3X |

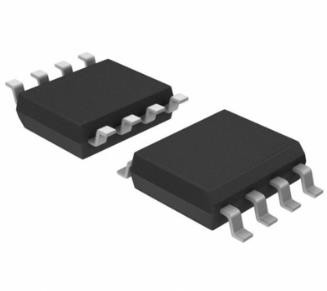

Lastest 30 - 100dB EMI Filter IC Surface Mount TI LM431AIM3X/NOPB SMD Mounting
ECAD Module | PCB Symbol,Footprint & 3D Model |
Supply and Demand Status | Balance |
Fake Threat In the Open Market | 72 pct. |
Popularity | High |
Is this a common-used part? | Yes |
Win Source Part Number | 109325-LM431AIM3X/NOPB |
Case / Package | SOT-23-3 |
Mounting | SMD (SMT) |
Temperature Range - Operating | -40°C to 85°C (TA) |
Current - Cathode | 1mA |
Temperature Coefficient | 50ppm/°C Typical |
Tolerance | ±2.2% |
Output Current | 100mA |
Maximum Output Voltage | 37V |
Nominal Output Voltage (Min/Fixed) | 2.495V |
Output Type | Adjustable |
Reference Type | Shunt |
Status | Active |
Packaging | Reel - TR |
Manufacturer | Texas Instruments |
Categories | Integrated Circuits |
Description for the LM431
The LM431 is a 3-terminal adjustable shunt regulator with ensured temperature stability over the entire temperature range of operation. The output voltage may be set at any level greater than 2.5 V (VREF) up to 36 V merely by selecting two external resistors that act as a voltage divided network. Due to the sharp turnon characteristics this device is an excellent replacement for many Zener diode applications.
The LM431 is available in space-saving SOIC-8, SOT-23, and TO-92 packages.
