Brand Name: | Texas Instruments |
---|---|
Model Number: | TPS79918DDCT |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Texas Instruments | Certificate: | / |
---|---|---|---|
Model: | TPS79918DDCT | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | 50 Ohm Undervoltage Lockout IC,100db Undervoltage Lockout IC,TPS79918DDCT |
50 ohm Undervoltage Lockout IC EMI Filter 100db TPS79918DDCT
ECAD Module | PCB Symbol,Footprint & 3D Model |
Supply and Demand Status | Limited |
Fake Threat In the Open Market | 45 pct. |
Popularity | Medium |

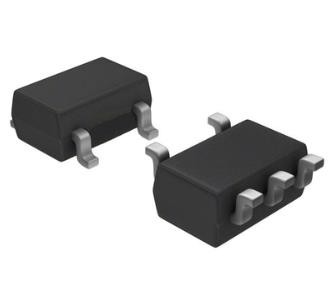

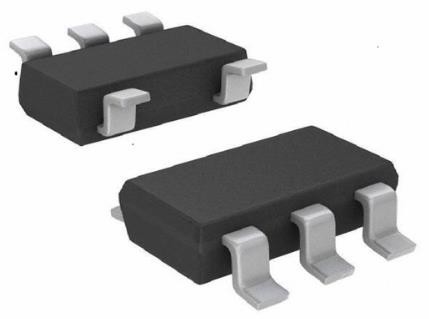

Case / Package | SOT-23-5 |
Mounting | SMD (SMT) |
Regulator Topology | Positive Fixed |
Temperature Range - Operating | -40°C to 125°C |
Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
Control Features | Enable |
Operating Supply Current | 60μA |
Output Current | 200mA |
Dropout Voltage-Max | 0.18V @ 200mA |
Nominal Output Voltage (Min/Fixed) | 1.8V |
PSRR | 70dB to 38dB (100Hz to 100kHz) |
Number of Regulators | 1 |
Output Type | Fixed |
Status | Active |
Packaging | Reel - TR |
Manufacturer | Texas Instruments |
Categories | Integrated Circuits |
Output Voltage | 1.8V |
Win Source Part Number | 034861-TPS79918DDCT |
Maximum Input Voltage | 6.5V |
The TPS799 low-dropout (LDO), low-power linear regulator offers excellent ac performance with very low ground current. High power-supply rejection ratio (PSRR), low noise, fast start-up, and excellent line and load transient response are provided while consuming a very low 40-µA (typical) ground current.
The TPS799 is stable with ceramic capacitors and uses an advanced BiCMOS fabrication process to yield a dropout voltage of typically 100 mV at a 200-mA output. The TPS799 uses a precision voltage reference and feedback loop to achieve an overall accuracy of 2% over all load, line, process, and temperature variations. The TPS799 features inrush current protection when the EN toggle is used to start the device, immediately clamping the current.
This device is fully specified over the temperature range of TJ = –40°C to +125°C, and is offered in a low-profile, die-sized ball grid array (DSBGA) package, making this device a good choice for wireless handsets and WLAN cards. This device is also offered in 5-pin SOT-23-THIN and 6-pin WSON packages.
