Brand Name: | Texas Instruments |
---|---|
Model Number: | UCC27714D |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Texas Instruments | Certificate: | / |
---|---|---|---|
Model: | UCC27714D | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | Half Bridge Gate Driver IC,UCC27714D Gate Driver IC |
EMI Filter IC Texas Instruments/TI UCC27714D
ECAD Module | PCB Symbol,Footprint & 3D Model |
Supply and Demand Status | Balance |
Popularity | High |
Fake Threat In the Open Market | 84 pct. |
Quantity per package | 50 |
HTSUS | 8542.39.0001 |
ECCN | EAR99 |
REACH Status | REACH Unaffected |
MSL Level | 2 (1 Year) |

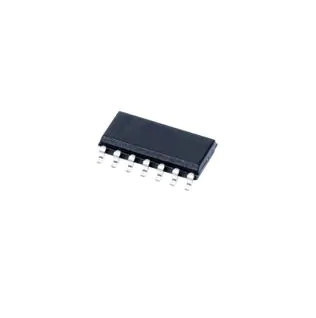

Package | 14-SOIC (0.154", 3.90mm Width) |
Mounting | Surface Mount |
Operating Temperature Range | -40°C ~ 125°C (TJ) |
Package | Tube |
Manufacturer | Texas Instruments |
Features | Half-Bridge Gate Driver IC Non-Inverting 14-SOIC |
Estimated Pruduction Lead Time | 34 Weeks |
Categories | Integrated Circuits (ICs) |
Family Name | UCC27714 |
Case / Package | 14-SOIC |
UCC27714 is a 600-Vhigh-side, low-side gate driver with 4-A source and 4-A sink current capability, targeted to drivepower MOSFETs or IGBTs. The device comprises of one ground-referenced channel (LO) and one floatingchannel (HO) which is designed for operating with bootstrap supplies. The device features excellentrobustness and noise immunity with capability to maintain operational logic at negative voltages ofup to –8 VDC on HS pin (at VDD = 12 V).
The device accepts a wide range bias supply input from 10 V to 20 V and offers UVLOprotection for both the VCC and HB bias supply pins. UCC27714 is available in SOIC-14 package andrated to operate from –40°C to 125°C.
