Brand Name: | Texas Instruments |
---|---|
Model Number: | LM2672MX-5.0/NOPB |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Texas Instruments | Certificate: | / |
---|---|---|---|
Model: | LM2672MX-5.0/NOPB | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | Fixed EMI Filter IC,260kHz EMI Filter IC,LM2672MX-5.0 |

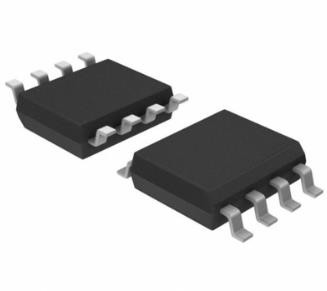

Lastest Fixed Output EMI Filter IC 260kHz LM2672MX-5.0/NOPB For EMI Chamber
ECAD Module | PCB Symbol,Footprint & 3D Model |
Supply and Demand Status | Limited |
Fake Threat In the Open Market | 37 pct. |
Popularity | Medium |
Win Source Part Number | 107666-LM2672MX-5.0/NOPB |
Case / Package | 8-SOIC |
Mounting | SMD (SMT) |
Temperature Range - Operating | -40°C to 125°C (TJ) |
Synchronous Rectifier | No |
Frequency - Switching | 260kHz |
Output Current | 1A |
Nominal Output Voltage (Min/Fixed) | 5V |
Maximum Input Voltage | 40V |
Minimum Input Voltage | 6.5V |
Number of Outputs | 1 |
Output Type | Fixed |
Topology | Buck |
Purpose | Step-Down |
Status | Active |
Packaging | Reel - TR |
Manufacturer | Texas Instruments |
Categories | Integrated Circuits |
The LM2672 series of regulators are monolithic integrated DC-DC converter built with a LMDMOS process. These regulators provide all the active functions for a step-down (buck) switching regulator, capable of driving a 1-A load current with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.
Requiring a minimum number of external components, these regulators are simple to use and include patented internal frequency compensation, fixed frequency oscillator, external shutdown, soft-start, and frequency synchronization.
The LM2672 series operates at a switching frequency of 260 kHz, thus allowing smaller sized filter components than what is required with lower frequency switching regulators. Because of its very high efficiency (>90%), the copper traces on the printed-circuit board are the only heat sinking required.
