Brand Name: | Texas Instruments |
---|---|
Model Number: | OPA388IDBVT |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Texas Instruments | Certificate: | / |
---|---|---|---|
Model: | TPS22925BYPHT | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | EMI IC Texas Instruments,CD7388CZ IC,OPA388IDBVT |
OPA388IDBVT CD7388CZ IC Texas Instruments EMI Hardened Zero Drift
Number of channels (#) | 1 |
Total supply voltage (Max) (+5V=5, +/-5V=10) | 5.5 |
Total supply voltage (Min) (+5V=5, +/-5V=10) | 2.5 |
Vos (offset voltage @ 25 C) (Max) (mV) | 0.005 |
GBW (Typ) (MHz) | 10 |
Features | EMI Hardened, High Cload Drive, Zero Crossover, Zero Drift |
Slew rate (Typ) (V/us) | 5 |
Rail-to-rail | In, Out |
Offset drift (Typ) (uV/C) | 0.005 |
Iq per channel (Typ) (mA) | 1.7 |
Vn at 1 kHz (Typ) (nV/rtHz) | 7 |
CMRR (Typ) (dB) | 138 |
Rating | Catalog |
Operating temperature range (C) | -40 to 125 |
Input bias current (Max) (pA) | 350 |
Output current (Typ) (mA) | 60 |
Architecture | CMOS |
THD + N @ 1 kHz (Typ) (%) | 0.0005 |

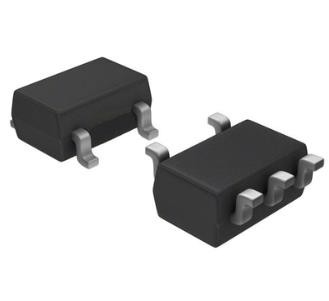

The OPAx388 (OPA388, OPA2388, and OPA4388) series of precision operational amplifiers are ultra-low noise, fast-settling, zero-drift, zero-crossover devices that provide rail-to-rail input and output operation. These features and excellent ac performance, combined with only 0.25 µV of offset and 0.005 µV/°C of drift over temperature, makes the OPAx388 a great choice for driving high-precision, analog-to-digital converters (ADCs) or buffering the output of high-resolution, digital-to-analog converters (DACs). This design results in excellent performance when driving analog-to-digital converters (ADCs) without degradation of linearity. The OPA388 (single version) is available in the VSSOP-8, SOT23-5, and SOIC-8 packages. The OPA2388 (dual version) is offered in the VSSOP-8 and SO-8 packages. The OPA4388 (quad version) is offered in the TSSOP-14 and SO-14 packages. All versions are specified over the industrial temperature range of –40°C to +125°C.
