Brand Name: | Texas Instruments |
---|---|
Model Number: | LMV824MTX/NOPB |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Texas Instruments | Certificate: | / |
---|---|---|---|
Model: | LMV824MTX/NOPB | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | Amplifier IC Chips Integrated Circuits,5.6MHz chips integrated circuits,LMV824MTX |
NEw Amplifier IC Chips Texas Instruments/TI LMV824MTX/NOPB
ECAD Module | PCB Symbol,Footprint & 3D Model |
Estimated EOL Date | 2028 |
Is this a common-used part? | Yes |
Popularity | High |
Fake Threat In the Open Market | 64 pct. |
Supply and Demand Status | Balance |
Alternative Parts (Cross-Reference) |
LMV324AMTC14X_NL; MAX4234AUD-T; LMV324AMTC14X_Q; |
Halogen Free | Compliant |
Country of Origin | Malaysia |
ECCN | EAR99 |
Introduction Date | August 01, 1999 |
Family Name | LMV824 |

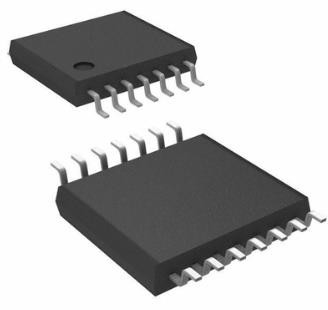

Case / Package | 14-TSSOP |
Mounting | SMD (SMT) |
Temperature Range - Operating | -40°C to 85°C |
Operating Supply Current | 1mA |
Channel Output Current | 45mA |
Supply Voltage - Operating | 2.5 V to 5.5 V, ±1.25 V to 2.75 V |
Win Source Part Number | 019663-LMV824MTX/NOPB |
Voltage - Input Offset | 3.5mV |
Output Type | Rail-to-Rail |
Number of Circuits | 4 |
Amplifier Type | General Purpose |
Status | Active |
Packaging | Reel - TR |
Manufacturer | Texas Instruments |
Categories | Integrated Circuits |
Current - Input Bias | 100nA |
Gain Bandwidth Product (GBP) | 5.6MHz |
Slew Rate | 2 V/μs |
The LMV821/LMV822/LMV824 op amps bring performance and economy to low voltage, low powersystems. With a 5 MHz unity-gain frequency, at 2.7 V supply, and a 1.4 V/µs slew rate, thequiescent current is only 220 µA per amplifier. They provide rail to rail output (RRO) swing into600 Ω load. The input common-mode voltage range includes ground and the maximum input offsetvoltage is 3.5 mV. They are also capable of easily driving large capacitive loads as indicated inthe applications section.
The LMV821 single op amp is available in the tiny SC70-5 package, which is about half thesize of the previous title holder, the SOT23-5. The LMV824NDGV is specified over the extendedindustrial temperature range and is in a TVSOP package.
Overall, the LMV821/LMV822/LMV824 devices are low voltage, low power and performance opamps designed for a wide range of applications at an economical price.
