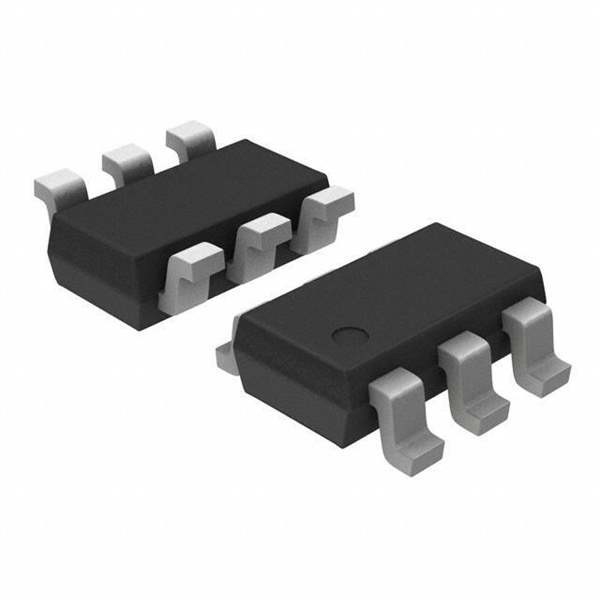

New Tech EAR99 ECCN EMI IC Step Down Halogen Free 300mA LMR14203XMK/NOPB
| ECAD Module | PCB Symbol,Footprint & 3D Model |
| Family Name | LMR14203 |
| ECCN | EAR99 |
| Halogen Free | Compliant |
| Estimated EOL Date | 2031 |
| Alternative Parts (Cross-Reference) |
LM2841YQMK/NOPB; LT3460ESC6#TRM; LT3460ESC6#PBF; LT3460ESC6#TR; |
| Supply and Demand Status | Balance |
| Fake Threat In the Open Market | 31 pct. |
| Popularity | High |
| Is this a common-used part? | Yes |
| Win Source Part Number | 071598-LMR14203XMK/NOPB |
| Case / Package | TSOT-23-6 |
| Mounting | SMD (SMT) |
| Temperature Range - Operating | -40°C to 125°C (TJ) |
| Synchronous Rectifier | No |
| Frequency - Switching | 1.25MHz |
| Output Current | 300mA |
| Maximum Output Voltage | 34V |
| Nominal Output Voltage (Min/Fixed) | 0.765V |
| Maximum Input Voltage | 42V |
| Minimum Input Voltage | 4.5V |
| Number of Outputs | 1 |
| Output Type | Adjustable |
| Topology | Buck |
| Purpose | Step-Down |
| Status | Active |
| Packaging | Reel - TR |
| Manufacturer | Texas Instruments |
| Categories | Integrated Circuits |
All trademarks are the property of their respective owners.
The LMR14203 is a PWM DC/DC buck (step-down) regulator. With a wide input range from 4.5V-42V, it is suitable for a wide range of applications such as power conditioning from unregulated sources. They feature a low RDSON (0.9Ω typical) internal switch for maximum efficiency (85% typical). Operating frequency is fixed at 1.25 MHz allowing the use of small external components while still being able to have low output voltage ripple. Soft-start can be implemented using the shutdown pin with an external RC circuit allowing the user to tailor the soft-start time to a specific application.
The LMR14203 is optimized for up to 300 mA load current.
Additional features include: thermal shutdown, VIN under-voltage lockout, and gate drive under-voltage lockout. The LMR14203 is available in a low profile SOT-6L package.
