Brand Name: | Texas Instruments |
---|---|
Model Number: | TPS563207SDRLR |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Texas Instruments | Certificate: | / |
---|---|---|---|
Model: | TPS563207SDRLR | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | 380uA Switching Power Supply Chip,580kHz Switching Power Supply Chip,TPS563207SDRLR |
Power Management ICs Texas Instruments/TI TPS563207SDRLR
Vin (Min) (V) | 4.3 |
Vin (Max) (V) | 17 |
Vout (Min) (V) | 0.806 |
Vout (Max) (V) | 7 |
Iout (Max) (A) | 3 |
Iq (Typ) (uA) | 380 |
Switching frequency (Min) (kHz) | 580 |
Switching frequency (Max) (kHz) | 580 |
Features | Enable, Forced PWM, Soft Start Fixed |
Operating temperature range (C) | -40 to 125 |
Rating | Catalog |
Regulated outputs (#) | 1 |

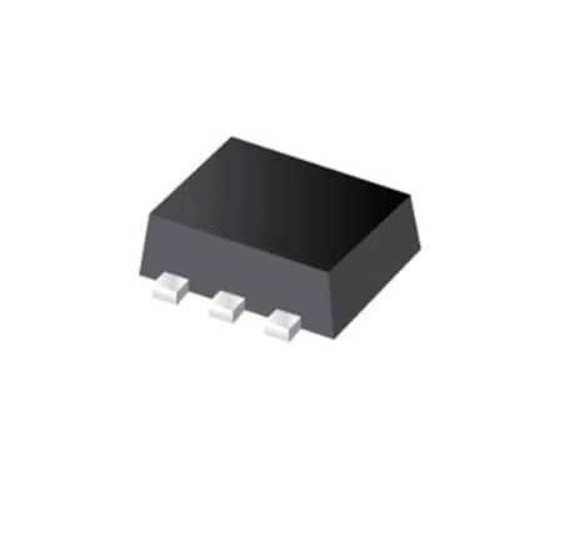

The TPS563207S is a simple, easy-to-use, 3-A synchronous buck converter in a SOT563 package.
The device is optimized to operate with minimum external components.
This switch mode power supply (SMPS) device employs D-CAP2™ mode control, providing a fast transient response and supporting both low-equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components.
The TPS563207S operates in FCCM mode, which maintains small ripple even at light loads. The TPS563207S is available in a 6-pin 1.6-mm × 1.6-mm SOT563 (DRL) package, and specified from a –40°C to 125°C junction temperature.
