Brand Name: | Texas Instruments |
---|---|
Model Number: | TPS2828DBVT |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Texas Instruments | Certificate: | / |
---|---|---|---|
Model: | TPS2828DBVT | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | PMIC Controller,14V Management ICs,TPS2828DBVT |

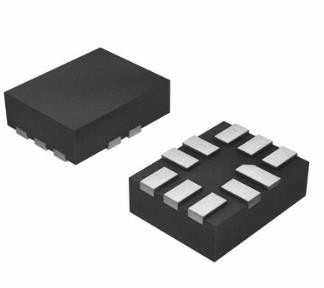

Power Management ICs Texas Instruments/TI TPS2828DBVT
ECAD Module | PCB Symbol,Footprint & 3D Model |
ECCN | EAR99 |
Halogen Free | Compliant |
Estimated EOL Date | 2028 |
Alternative Parts (Cross-Reference) |
TPS2828DBV; TPS2828DBVR; |
Introduction Date | July 01, 2004 |
Supply and Demand Status | Limited |
Fake Threat In the Open Market | 44 pct. |
Popularity | Medium |
Manufacturer Package | SOT-23-5 |
Package | SC-74A, SOT-753 |
Mounting | SMD |
Operating Temperature Range | -40°C ~ 125°C (TA) |
Family Name | TPS2828 |
Current - Peak Output (Source, Sink) | 2A, 2A |
Country of Origin | China, Thailand |
Rise / Fall Time (Typ) | 14ns, 14ns |
Gate Type | N-Channel MOSFET |
Number of Drivers | 1 |
Channel Type | Single |
Driven Configuration | Low-Side |
Packaging | Reel - TR |
Manufacturer | Texas Instruments |
Categories | Integrated Circuits (ICs) |
Operating Supply Voltage | 4 V ~ 14 V |
Logic Voltage - VIL, VIH | 1V, 4V |
Input Type | Inverting |
The TPS28xx single-channel high-speed MOSFET drivers are capable of delivering peak currents of up to 2 A into highly capacitive loads. High switching speeds (tr and tf = 14 ns typ) are obtained with the use of BiCMOS outputs. Typical threshold switching voltages are 2/3 and 1/3 of VCC. The design inherently minimizes shoot-through current.
A regulator is provided on TPS2816 through TPS2819 devices to allow operation with supply inputs between 14 V and 40 V. The regulator output can be used to power other circuits, provided power dissipation does not exceed package limitations. If the regulator is not required, VDD (the regulator input) should be connected to VCC. The TPS2816 and TPS2817 input circuits include an active pullup circuit to eliminate the need for an external resistor when using open-collector PWM controllers. The TPS2818 and TPS2819 are identical to the TPS2816 and TPS2817, except that the active pullup circuit is omitted. The TPS2828 and TPS2829 are identical to the TPS2818 and TPS2819, except that the internal voltage regulator is omitted, allowing quiescent current to drop to less than 15 uA when the inputs are high or low.
The TPS28xx series devices are available in 5-pin SOT-23 (DBV) packages and operate over an ambient temperature range of –40°C to 125°C.
