Brand Name: | Texas Instruments |
---|---|
Model Number: | TPSM560R6RDAR |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Texas Instruments | Certificate: | / |
---|---|---|---|
Model: | TPSM560R6RDAR | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | QFN Power Management ICs,FIXED Power Management ICs,TPSM560R6RDAR |
Type: | Drive IC | Shipping Way: | Post Office And So On |
---|---|---|---|
Shipping Ways: | DHL FEDEX UPS EMS TNT | Application: | Driver/Controller |
Whatsapp: | 86-15007558828 | ||
High Light: |
Controller Power Management ICs,EMI Power Management ICs,TPSM560R6RDAR |

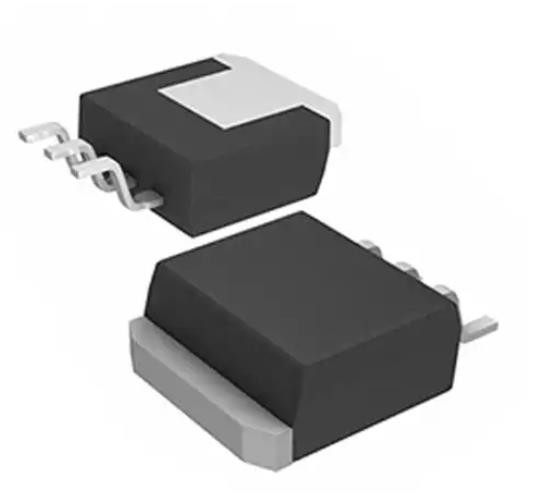

Power Management ICs Texas Instruments/TI TPSM560R6RDAR
Iout (Max) (A) | 0.6 |
Vin (Min) (V) | 4.2 |
Vin (Max) (V) | 60 |
Vout (Min) (V) | 1 |
Vout (Max) (V) | 6 |
Soft start | Fixed |
Features | EMI Tested, Enable, Overcurrent protection, Power Good |
Operating temperature range (C) | -40 to 125 |
Iq (Typ) (uA) | 26 |
Regulated outputs (#) | 1 |
Switching frequency (Max) (kHz) | 460 |
Switching frequency (Min) (kHz) | 340 |
Duty cycle (Max) (%) | 91 |
Topology | Buck, Inverting Buck-Boost, Synchronous Buck |
The TPSM560R6 power module is a highly integrated 600-mA power solution that combines a 60-V input, step-down DC/DC converter with power MOSFETs, a shielded inductor, and passives in a thermally-enhanced QFN package. The 5.0-mm × 5.5-mm × 4.0-mm, 15-pin QFN package uses Enhanced HotRod QFN technology for enhanced thermal performance, small footprint, and low EMI. The package footprint has all pins accessible from the perimeter and a single large thermal pad for simple layout and easy handling in manufacturing.
The TPSM560R6 is a compact, easy-to-use power module with a wide adjustable output voltage range of 1.0 V to 6 V. The total solution requires as few as four external components and eliminates the loop compensation and magnetics part selection from the design process. The full feature set includes power good, programmable UVLO, prebias start-up, overcurrent, and temperature protections, making the TPSM560R6 an excellent device for powering a wide range of applications. Space-constrained applications benefit from the 5.0-mm × 5.5-mm package.
