Brand Name: | Texas Instruments |
---|---|
Model Number: | HVDA541QDRQ1 |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Texas Instruments | Certificate: | / |
---|---|---|---|
Model: | HVDA541QDRQ1 | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | 12 Ohm BOM Electronic Components T,Lead Free BOM Electronic Components,TS3A5017RGYR |

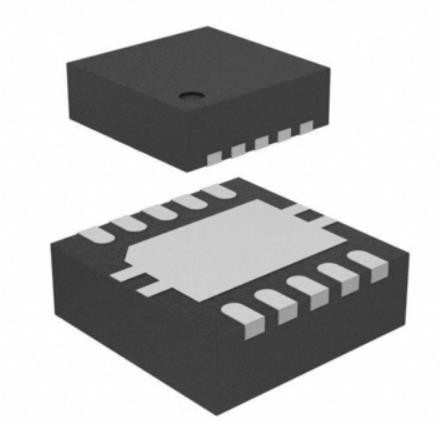

IC Electronic Components Texas Instruments/TI TS3A5017RGYR
ECAD Module | PCB Symbol,Footprint & 3D Model |
Halogen Free | Compliant |
Estimated EOL Date | 2027 |
Is this a common-used part? | Yes |
Popularity | High |
Fake Threat In the Open Market | 51 pct. |
Supply and Demand Status | Balance |
Alternative Parts (Cross-Reference) |
TS3A5017DBR; TS3A5017PWE4; TS3A5017DBQRG4; |
Country of Origin | Malaysia |
ECCN | EAR99 |
Introduction Date | September 01, 2004 |
Family Name | TS3A5017 |
Temperature Range - Operating | -40°C to 85°C (TA) |
Max Leakage Current (IS off) | 100nA |
Crosstalk | -49dB @ 1MHz |
Case / Package | 16-VQFN (4x4) |
Win Source Part Number | 035068-TS3A5017RGYR |
Channel Capacitance(CS off, CD off) | 4.5pF, 19pF |
Single Supply Voltage (V+) | 2.3 V to 3.6 V |
Charge Injection | 5pC |
Max On Resistance | 12 Ohm |
Number of Circuits | 2 |
Switch Circuit | SP4T |
Status | Active |
Packaging | Reel - TR |
Manufacturer | Texas Instruments |
Categories | Integrated Circuits |
Max Switch Time (Ton,Toff) | 9.5ns, 3.5ns |
Channel-to-Channel Matching (ΔRon) | 1 Ohm |
-3db Bandwidth | 165MHz |
The TS3A5017 device is a dual single-pole quadruple-throw (4:1) analog switch that isdesigned to operate from 2.3 V to 3.6 V. This device can handle both digital and analog signals,and signals up to V+ can be transmitted in either direction.
