| Brand Name: | Texas Instruments |
|---|---|
| Model Number: | TMUX1511RSVR |
| Minimum Order Quantity: | 1 piece |
| Delivery Time: | 2~8 workdays |
| Payment Terms: | T/T |
| Brand: | Texas Instruments | Certificate: | / |
|---|---|---|---|
| Model: | TMUX1511RSVR | MOQ: | 1 Pc |
| Price: | Negotiated | Delivery: | 2~8 Workdays |
| Payment: | T/T | ||
| High Light: | IC BOM Electronic Components,Texas Instruments BOM Electronic Components,TMUX1511RSVR |
||
One-Stop Solution of 3000MHz Original IC Electronic Components Texas Instruments TMUX1511RSVR

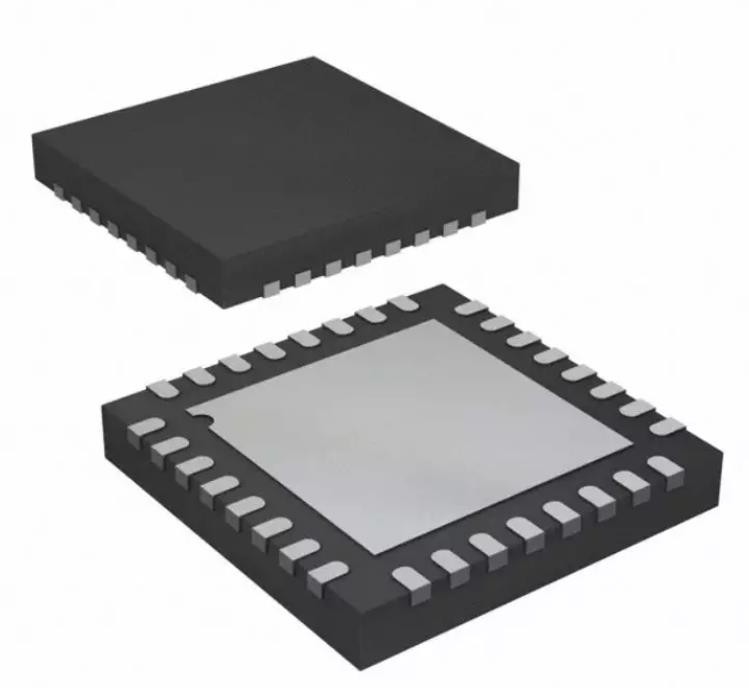

IC Electronic Components Texas Instruments/TI TMUX1511RSVR
| Configuration | 1:1 SPST |
| Number of channels (#) | 4 |
| Power supply voltage - single (V) | 1.8, 2.5, 3.3, 5 |
| Protocols | Analog, JTAG, UART, I2C, SPI, RGMII, TDM, I2S |
| Ron (Typ) (Ohms) | 2 |
| CON (Typ) (pF) | 3.3 |
| ON-state leakage current (Max) (µA) | 0.05 |
| Bandwidth (MHz) | 3000 |
| Operating temperature range (C) | -40 to 125 |
| Features | 1.8-V compatible control inputs, Fail-safe logic, Integrated pulldown resistor on logic pin, Powered-off protection, Supports input voltage beyond supply |
| Input/output continuous current (Max) (mA) | 25 |
| Rating | Catalog |
| Supply current (Typ) (uA) | 37 |
The TMUX1511 is a complementary metal-oxide semiconductor (CMOS) switch.The TMUX1511 offers 1:1 SPST switch configuration with 4 independently controlledchannels. Wide operating supply of 1.5 V to 5.5 V allows for use in a broad array of applicationsfrom servers and communication equipment to industrial applications. The device supportsbidirectional analog and digital signals on the source(Sx) and drain (Dx) pins and can pass signals above supply up to VDD x 2,with a maximum input/output voltage of 5.5 V.
Powered-off Protection up to 3.6 V on thesignal path of the TMUX1511 provides isolation when the supply voltage is removed(VDD = 0 V). Without this protection feature, switches can back-power thesupply rail through an internal ESD diode and cause potential damage to the system.
Fail-Safe Logic circuitry allows voltages onthe logic control pins to be applied before the supply pin, protecting the device from potentialdamage. All logic control inputs have1.8 V logic compatible thresholds, ensuring both TTL andCMOS logic compatibility when operating in the valid supply voltage range.
