Features for the TMUX154E

• VCC Operation at 3 V to 4.3 V
• I/O Pins Can Tolerate up to 5.25 V
• 1.8-V Compatible Control Logic
• Supports Powered-off Protection I/O Pins Hi-Z When VCC = 0 V
• RON = 10 Ω Maximum
• ΔRON = 0.35 Ω Typical
• Cio(ON) = 7.5 pF Typical
• Low Power Consumption (1 uA Maximum)
• –3-dB Bandwidth = 900 MHz Typical
• Latch-Up Performance Exceeds
  100 mA Per JESD 78, Class II (1)
• ESD Performance Tested Per JESD 22
  • 8000-V Human-Body Model
    (A114-B, Class II)
  • 1000-V Charged-Device Model (C101)
• ESD Performance I/O Port to GND (2)
  • 15000-V Human-Body Model

(1)Except EN and SEL Inputs

(2)High-voltage HBM is performed in addition to the standard HBM testing (A114-B, Class II) and applies to I/O ports tested with respect to GND only.

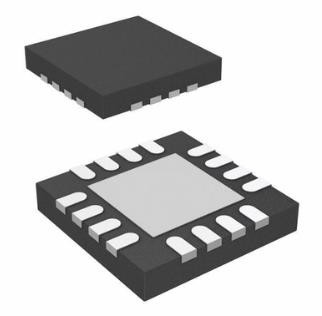

Description for the TMUX154E

The TMUX154E is a high-bandwidth 2:1 switch specially designed for the switching ofhigh-speed signals in applications with limited I/Os. The wide bandwidth (900 MHz) of this switchallows signals to pass with minimum edge and phase distortion. The switch is bidirectional andoffers little or no attenuation of high-speed signals. It is designed for low bit-to-bit skew andhigh channel-to-channel noise isolation.

The TMUX154E integrates ESD protection cells on all pins, is available in a tiny UQFNpackage (1.8 mm × 1.4 mm) or a VSSOP package, and is characterized over the free-air temperaturerange of –40°C to 85°C.
