Brand Name: | Texas Instruments |
---|---|
Model Number: | TPS62290DRVT |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Texas Instruments | Certificate: | / |
---|---|---|---|
Model: | TPS62290DRVT | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | Controller Automotive Led Driver IC,PMIC Automotive Led Driver IC,TPS62290DRVT |
Type: | Drive IC | Price: | Please Contact Us |
---|---|---|---|
Shipping Way: | Post Office And So On | Shipping Ways: | DHLUPSFedexEMSHK Post |
Application: | Driver/Controller | ||
High Light: |
Controller Texas Instruments PMIC,Step Down Texas Instruments PMIC,TPS62290DRVT |

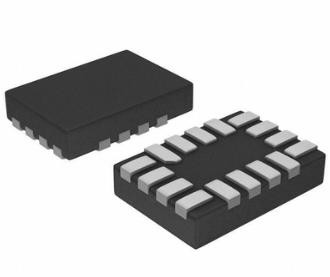

Power Management ICs Texas Instruments/TI TPS62290DRVT
ECAD Module | PCB Symbol,Footprint & 3D Model |
Introduction Date | April 01, 2007 |
ECCN | EAR99 |
Country of Origin | Thailand |
Halogen Free | Compliant |
Estimated EOL Date | 2031 |
Alternative Parts (Cross-Reference) |
LTC3568EDD#TR; MP2105DK-Z; LTC3404IMS8; LTC3404IMS8#TR; |
Supply and Demand Status | Balance |
Fake Threat In the Open Market | 58 pct. |
Popularity | High |
Is this a common-used part? | Yes |
Mounting | SMD (SMT) |
Temperature Range - Operating | -40°C to 85°C (TA) |
Synchronous Rectifier | Yes |
Family Name | TPS62290 |
Frequency - Switching | 2.25MHz |
Maximum Output Voltage | 6V |
Case / Package | 6-SON (2x2) |
Maximum Input Voltage | 6V |
Win Source Part Number | 034389-TPS62290DRVT |
Number of Outputs | 1 |
Output Type | Adjustable |
Topology | Buck |
Purpose | Step-Down |
Status | Active |
Packaging | Reel - TR |
Manufacturer | Texas Instruments |
Categories | Integrated Circuits |
Output Current | 1A |
Nominal Output Voltage (Min/Fixed) | 0.6V |
Minimum Input Voltage | 2.3V |
The TPS6229x devices are highly efficient synchronous step down DC/DC convertersoptimized for battery powered portable applications. They provide up to 1000-mA output current froma single Li-ion cell.
With an input voltage range of 2.3 V to 6.0 V, the devices support batteries withextended voltage range and are ideal to power portable applications like mobile phones and otherportable equipment.
The TPS6229x devices operate at 2.25-MHz fixed switching frequency and enter power savemode operation at light load currents to maintain high efficiency over the entire load currentrange.
The power save mode is optimized for low output voltage ripple. For low noiseapplications, the devices can be forced into fixed frequency pulse width modulation (PWM) mode bypulling the MODE pin high. In the shutdown mode, the current consumption is reduced to less than1 µA. The TPS6229x devices allow the use of small inductors and capacitors to achieve a smallsolution size.
The TPS6229x devices operate over a free air temperature range of –40°C to 85°C. Thedevices are available in a 2-mm × 2-mm 6-pin WSON package (DRV).
