Brand Name: | Texas Instruments |
---|---|
Model Number: | LMV842QMM/NOPB |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Texas Instruments | Certificate: | / |
---|---|---|---|
Model: | LMV842QMM/NOPB | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | SO16 Amplifier Integrated Circuits,TDA2030 Amplifier Circuits,LMV842QMM |

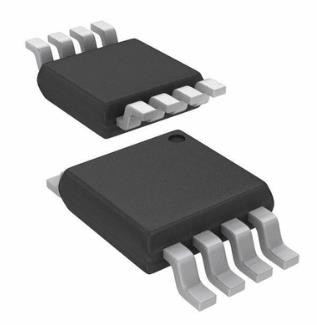

Amplifier IC Chips Texas Instruments/TI LMV842QMM/NOPB
ECAD Module | PCB Symbol,Footprint & 3D Model |
ECCN | EAR99 |
Country of Origin | Malaysia |
Halogen Free | Compliant |
Estimated EOL Date | 2031 |
Alternative Parts (Cross-Reference) |
MAX4017EUA+; AD8529ARM-REEL7; AD8529ARMZ-REEL; MAX4216EUA; |
Introduction Date | November 18, 2012 |
Family Name | LMV842Q |
Supply and Demand Status | Balance |
Fake Threat In the Open Market | 32 pct. |
Popularity | Medium |
Manufacturer Package | 8-VSSOP |
Package | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
Mounting | SMD |
Operating Temperature Range | -40°C ~ 125°C |
Output Current per Channel | 37mA |
Voltage - Input Offset | 50μV |
Dual Supply Voltage (±) | 2.7 V ~ 12 V, ±1.35 V ~ 6 V |
GBP - Gain Bandwidth Product | 4.5MHz |
Output Type | Rail-to-Rail |
Number of Circuits | 2 |
Amplifier Type | General |
Operating Supply Current | 1.03mA |
Manufacturer | Texas Instruments |
Categories | Integrated Circuits (ICs) |
Current - Input Bias | 0.3pA |
SR - Slew Rate | 2.5 V/μs |
Packaging | Reel package |
The LMV84x-Q1 devicesare low-voltage and low-power operational amplifiers that operate with supply voltages ranging from2.7 V to 12 V and have rail-to-rail input and output capability. Their low offset voltage, lowsupply current, and CMOS inputs make them ideal for high impedance sensor interface andbattery-powered applications.

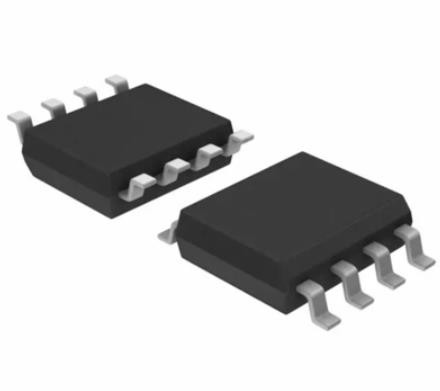

The single LMV841-Q1 isoffered in the space-saving 5-pin SC70 package, the dual LMV842-Q1 in the 8-pin VSSOP and 8-pin SOIC packages, and the quadLMV844-Q1 in the 14-pin TSSOP and14-pin SOIC packages. These small packages are ideal solutions for area-constrained PCBs andportable electronics.
The LMV841-Q1, LMV842-Q1, and LMV844-Q1 incorporate enhancedmanufacturing and support processes for the automotive market, including defect detectionmethodologies. Reliability qualification is compliant with the requirements and temperature gradesdefined in the AEC-Q100 standard.
