Brand Name: | OEM |
---|---|
Model Number: | Tact Switch 6*6*4-8H |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | OEM | Certificate: | / |
---|---|---|---|
Model: | Tact Switch 6*6*4-8H | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | 4 Pin Micro Tact Switch,SMD Micro Tact Switch,6x6mm Tactile Tact Push Button Switch |
Product Description

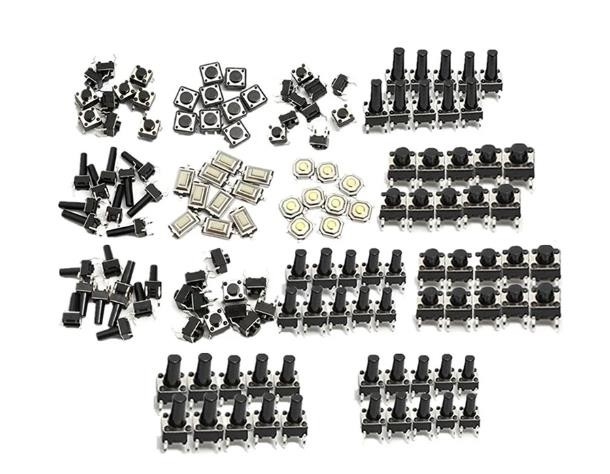

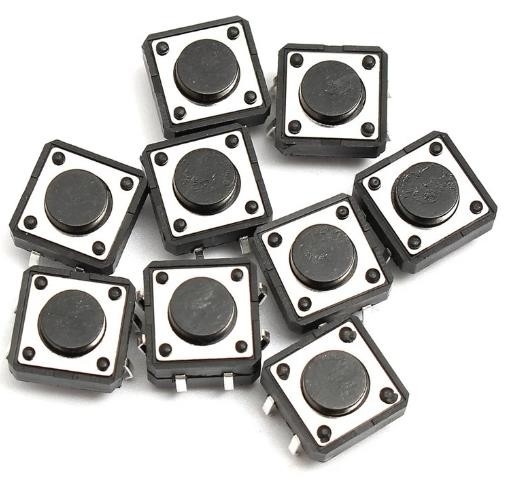

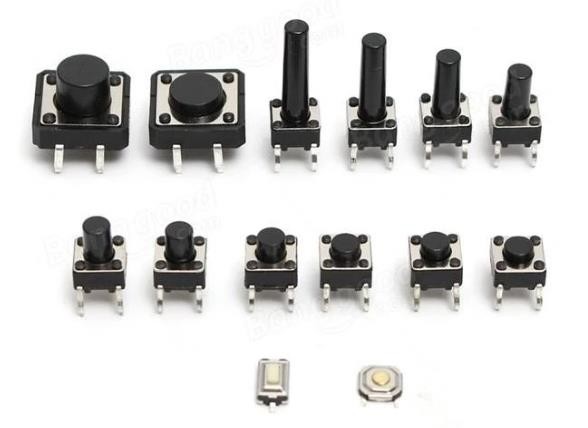

SMD 4 Pin Micro Tact Switch 6x6mm Tactile Tact Push Button Switch
Tact Switch 4-pin micro switch key mini tactile button key Touch switch 6X6MM
Touch switch 2.5/3*6/4*4/4.5*4.5/6*6/12*12/ 6X6X10MM6*6*10 plug-in straight plug 4-pin micro switch key switch
pressure key switch micro tact switch mini tactile button switch Specification:
Type | Push on Tact Switch |
Terminal | SMD/SMT |
Rating | DC12V 50mA |
Travel | 0.25±0.1mm |
Contact Resistance | ≤100mΩ |
Operation Temp | -20℃ ~ +70℃ |
Electrical Life | 100,000 Cycles Min |
Operating Force | 250+-40gf |
Dielectric Strength | AC250V(50/60Hz for 1minute) |
Enviroment humidity | -25-+70°C |
Relative humidity | (40°C)≤95% |
Insulation Resistance | ≥100mΩ |
Voltage withstand | AC250V 50Hz/min |
Push knorb height size | Can be choosed H=3.8,4,4.3,4.5,5.5,6,6.5.....28.5mm |
Welding Conditions |
Hand Soldering 350℃ Max 3s Max Condition for Reflow 260℃Max 5s Max |
Welding time(seconds) | 3S |
