ICM-20600 TDK InvenSense Accelerometer Sensor Module

Product Description

ICM-20600 TDK InvenSense Accelerometer Sensor Module IC Electronics Components

ICM-20600 TDK InvenSense Accelerometer Sensor Module IC

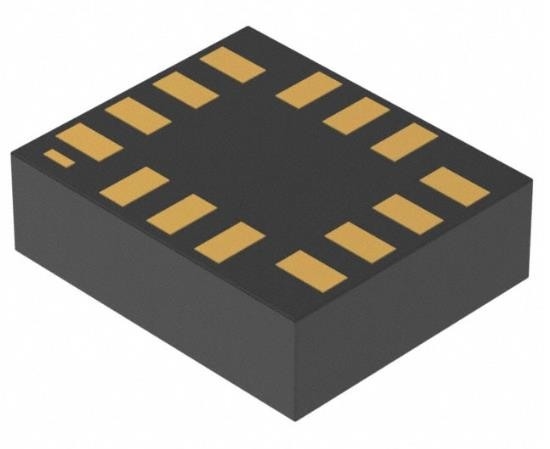

High Performance 6-Axis MEMS MotionTracking™ Device in 2.5x3mm Package

GENERAL DESCRIPTION:
The ICM-20600 is a 6-axis MotionTracking device that combines a 3-axis gyroscope, 3-axis accelerometer, in a small 2.5x3x0.91mm (14-pin LGA) package. • High performance specs • Gyroscope sensitivity error: ±1% • Gyroscope noise: ±4 mdps/Hz • Accelerometer noise: 100 µg/Hz • Includes 1K-byte FIFO to reduce traffic on the serial bus interface, and reduce power consumption by allowing the system processor to burst read sensor data and then go into a low-power mode • EIS FSYNC support ICM-20600 includes on-chip 16-bit ADCs, programmable digital filters, an embedded temperature sensor, and programmable interrupts. The device features an operating voltage range down to 1.71V. Communication ports include I 2C and high-speed SPI at 10 MHz.

FEATURES:
3-Axis Gyroscope with Programmable FSR of ±250 dps, ±500 dps, ±1000 dps, and ±2000 dps • 3-Axis Accelerometer with Programmable FSR of ±2g, ±4g, ±8g and ±16g • User-programmable interrupts • Wake-on-motion interrupt for low power operation of applications processor • 1K byte FIFO buffer enables the applications processor to read the data in bursts • On-Chip 16-bit ADCs and Programmable Filters • Host interface: 10 MHz SPI or 400 kHz Fast Mode I2C • Digital-output temperature sensor • VDD operating range of 1.71V to 3.45V • MEMS structure hermetically sealed and bonded at wafer level • RoHS and Green compliant

APPLICATIONS:

Smartphones and Tablets
Wearable Sensors
IoT Applications
Motion-based game controllers
3D remote controls for Internet connected DTVs and set top boxes, 3D mice
