Brand Name: | E2B Cylindrical Proximity Sensor PROX INDUCTIVE 4MM CYLIND E2B-M12KS04M1C2 |
---|---|
Model Number: | E2B-M12KS04M1C2 |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | E2B Cylindrical Proximity Sensor PROX INDUCTIVE 4MM CYLIND E2B-M12KS04M1C2 | Certificate: | / |
---|---|---|---|
Model: | E2B-M12KS04M1C2 | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | E2B Cylindrical Proximity Sensor,4MM Cylindrical Proximity Sensor,E2B-M12KS04M1C2 |
Product Description

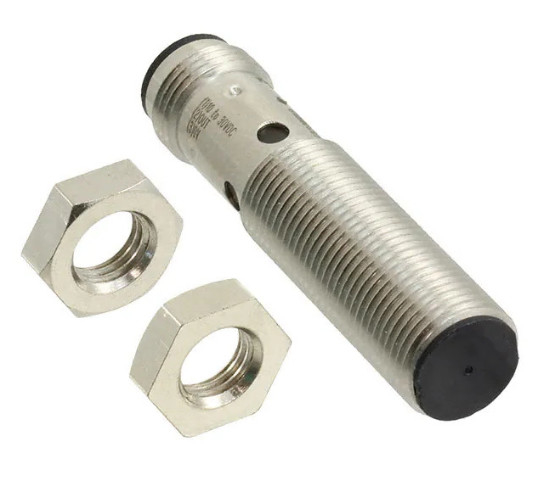

E2B Cylindrical Proximity Sensor PROX INDUCTIVE 4MM CYLIND E2B-M12KS04M1C2
Perfect fit for standard environments

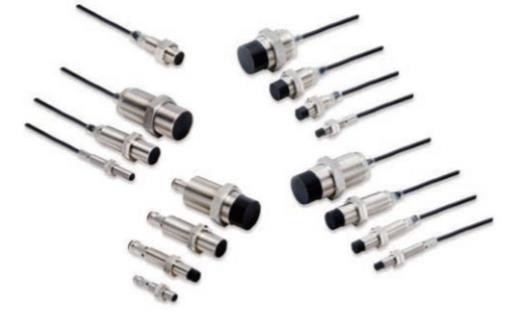

• Embody two seemingly contradictory characteristics: value-formoney and high reliability
• All 372 Models
• Four different sizes: M8, M12, M18 and M30
• Single and double sensing distances, Shielded and unshielded
• A choice of short and long bodies, two connecting methods and four output types
• Operating temperature: –25ºC to 70ºC
• Water resistance: IP67
• With an all-round 360º visible indicator
Specification :Sensor PROX INDUCTIVE 4MM CYLIND E2B-M12KS04M1C2
Category
|
Sensors, Transducers
|
Proximity Sensors - Industrial
|
|
Mfr
|
Omron Automation and Safety
|
Series
|
E2B
|
Package
|
Bulk
|
Product Status
|
Active
|
Sensor Type
|
Inductive
|
Sensing Distance
|
0.157" (4mm)
|
Output Type
|
NPN-NC, 3-Wire
|
Response Frequency
|
1kHz
|
Shielding
|
Shielded
|
Material - Body
|
Nickel-Plated Brass
|
Voltage - Supply
|
10V ~ 30V
|
Termination Style
|
Connector
|
Operating Temperature
|
-25°C ~ 70°C
|
Ingress Protection
|
IP67
|
Indicator
|
LED
|
Package / Case
|
Cylinder, Threaded - M12
|
Base Product Number
|
E2B-M12
|
E2B Cylindrical Proximity Sensor Ordering information:
Connecting | |||||
Sensing | Body | Output | |||
Size | method | Operation mode NO | Operation mode NC | ||
distance | length | configuration | |||
(See note 1.) | |||||
PNP | E2B-S08KS01-WP-B1 2M | E2B-S08KS01-WP-B2 2M | |||
Short | |||||
NPN | E2B-S08KS01-WP-C1 2M | E2B-S08KS01-WP-C2 2M | |||
Pre-wired | |||||
PNP | E2B-S08LS01-WP-B1 2M | E2B-S08LS01-WP-B2 2M | |||
Long | |||||
NPN | E2B-S08LS01-WP-C1 2M | E2B-S08LS01-WP-C2 2M | |||
Shielded | |||||
1.5 mm | PNP | E2B-S08KS01-MC-B1 | E2B-S08KS01-MC-B2 | ||
Short | |||||
M8 Connec- | NPN | E2B-S08KS01-MC-C1 | E2B-S08KS01-MC-C2 | ||
tor (3-pin) | PNP | E2B-S08LS01-MC-B1 | E2B-S08LS01-MC-B2 | ||
Long | |||||
NPN | E2B-S08LS01-MC-C1 | E2B-S08LS01-MC-C2 | |||
Single | |||||
PNP | E2B-S08KN02-WP-B1 2M | E2B-S08KN02-WP-B2 2M | |||
Short | |||||
NPN | E2B-S08KN02-WP-C1 2M | E2B-S08KN02-WP-C2 2M | |||
Pre-wired | |||||
PNP | E2B-S08LN02-WP-B1 2M | E2B-S08LN02-WP-B2 2M | |||
Long | |||||
NPN | E2B-S08LN02-WP-C1 2M | E2B-S08LN02-WP-C2 2M | |||
Unshielded | |||||
2 | mm | PNP | E2B-S08KN02-MC-B1 | E2B-S08KN02-MC-B2 | |
Short | |||||
M8 Connec- | NPN | E2B-S08KN02-MC-C1 | E2B-S08KN02-MC-C2 | ||
tor (3-pin) | PNP | E2B-S08LN02-MC-B1 | E2B-S08LN02-MC-B2 | ||
Long | |||||
M8 | NPN | E2B-S08LN02-MC-C1 | E2B-S08LN02-MC-C2 | ||
(Stainless steel) | |||||
PNP | E2B-S08KS02-WP-B1 2M | E2B-S08KS02-WP-B2 2M | |||
(See note 2.) | Short | ||||
NPN | E2B-S08KS02-WP-C1 2M | E2B-S08KS02-WP-C2 2M | |||
Pre-wired | |||||
PNP | E2B-S08LS02-WP-B1 2M | E2B-S08LS02-WP-B2 2M | |||
Long | |||||
NPN | E2B-S08LS02-WP-C1 2M | E2B-S08LS02-WP-C2 2M | |||
Shielded | |||||
2 | mm | PNP | E2B-S08KS02-MC-B1 | E2B-S08KS02-MC-B2 | |
Short | |||||
M8 Connec- | NPN | E2B-S08KS02-MC-C1 | E2B-S08KS02-MC-C2 | ||
tor (3-pin) | PNP | E2B-S08LS02-MC-B1 | E2B-S08LS02-MC-B2 | ||
Long | |||||
NPN | E2B-S08LS02-MC-C1 | E2B-S08LS02-MC-C2 | |||
Double | |||||
PNP | E2B-S08KN04-WP-B1 2M | E2B-S08KN04-WP-B2 2M | |||
Short | |||||
NPN | E2B-S08KN04-WP-C1 2M | E2B-S08KN04-WP-C2 2M | |||
Pre-wired | |||||
PNP | E2B-S08LN04-WP-B1 2M | E2B-S08LN04-WP-B2 2M | |||
Long | |||||
NPN | E2B-S08LN04-WP-C1 2M | E2B-S08LN04-WP-C2 2M | |||
Unshielded | |||||
4 | mm | PNP | E2B-S08KN04-MC-B1 | E2B-S08KN04-MC-B2 | |
Short | |||||
M8 Connec- | NPN | E2B-S08KN04-MC-C1 | E2B-S08KN04-MC-C2 | ||
tor (3-pin) | PNP | E2B-S08LN04-MC-B1 | E2B-S08LN04-MC-B2 | ||
Long | |||||
NPN | E2B-S08LN04-MC-C1 | E2B-S08LN04-MC-C2 | |||
Connecting | |||||
Sensing | Body | Output | |||
Size | method | Operation mode NO | Operation mode NC | ||
distance | length | configuration | |||
PNP | E2B-M12KS02-WP-B1 2M | E2B-M12KS02-WP-B2 2M | |||
Short | |||||
NPN | E2B-M12KS02-WP-C1 2M | E2B-M12KS02-WP-C2 2M | |||
Pre-wired | |||||
PNP | E2B-M12LS02-WP-B1 2M | E2B-M12LS02-WP-B2 2M | |||
Long | |||||
NPN | E2B-M12LS02-WP-C1 2M | E2B-M12LS02-WP-C2 2M | |||
Shielded | |||||
2 | mm | PNP | E2B-M12KS02-M1-B1 | E2B-M12KS02-M1-B2 | |
Short | |||||
M12 | NPN | E2B-M12KS02-M1-C1 | E2B-M12KS02-M1-C2 | ||
Connector | PNP | E2B-M12LS02-M1-B1 | E2B-M12LS02-M1-B2 | ||
Long | |||||
NPN | E2B-M12LS02-M1-C1 | E2B-M12LS02-M1-C2 | |||
Single | |||||
PNP | E2B-M12KN05-WP-B1 2M | E2B-M12KN05-WP-B2 2M | |||
Short | |||||
NPN | E2B-M12KN05-WP-C1 2M | E2B-M12KN05-WP-C2 2M | |||
Pre-wired | |||||
PNP | E2B-M12LN05-WP-B1 2M | E2B-M12LN05-WP-B2 2M | |||
Long | |||||
NPN | E2B-M12LN05-WP-C1 2M | E2B-M12LN05-WP-C2 2M | |||
Unshielded | |||||
5 | mm | PNP | E2B-M12KN05-M1-B1 | E2B-M12KN05-M1-B2 | |
Short | |||||
M12 | NPN | E2B-M12KN05-M1-C1 | E2B-M12KN05-M1-C2 | ||
Connector | PNP | E2B-M12LN05-M1-B1 | E2B-M12LN05-M1-B2 | ||
Long | |||||
NPN | E2B-M12LN05-M1-C1 | E2B-M12LN05-M1-C2 | |||
M12 (Brass) | |||||
PNP | E2B-M12KS04-WP-B1 2M | E2B-M12KS04-WP-B2 2M | |||
Short | |||||
NPN | E2B-M12KS04-WP-C1 2M | E2B-M12KS04-WP-C2 2M | |||
Pre-wired | |||||
PNP | E2B-M12LS04-WP-B1 2M | E2B-M12LS04-WP-B2 2M | |||
Long | |||||
Shielded | NPN | E2B-M12LS04-WP-C1 2M | E2B-M12LS04-WP-C2 2M | ||
(See note 2.) | 4 mm | PNP | E2B-M12KS04-M1-B1 | E2B-M12KS04-M1-B2 | |
Short | |||||
M12 | NPN | E2B-M12KS04-M1-C1 | E2B-M12KS04-M1-C2 | ||
Connector | PNP | E2B-M12LS04-M1-B1 | E2B-M12LS04-M1-B2 | ||
Long | |||||
NPN | E2B-M12LS04-M1-C1 | E2B-M12LS04-M1-C2 | |||
Double | |||||
PNP | E2B-M12KN08-WP-B1 2M | E2B-M12KN08-WP-B2 2M | |||
Short | |||||
NPN | E2B-M12KN08-WP-C1 2M | E2B-M12KN08-WP-C2 2M | |||
Pre-wired | |||||
PNP | E2B-M12LN08-WP-B1 2M | E2B-M12LN08-WP-B2 2M | |||
Long | |||||
NPN | E2B-M12LN08-WP-C1 2M | E2B-M12LN08-WP-C2 2M | |||
Unshielded | |||||
8 | mm | PNP | E2B-M12KN08-M1-B1 | E2B-M12KN08-M1-B2 | |
Short | |||||
M12 | NPN | E2B-M12KN08-M1-C1 | E2B-M12KN08-M1-C2 | ||
Connector | PNP | E2B-M12LN08-M1-B1 | E2B-M12LN08-M1-B2 | ||
Long | |||||
NPN | E2B-M12LN08-M1-C1 | E2B-M12LN08-M1-C2 |
Connecting | |||||
Sensing | Body | Output | |||
Size | method | Operation mode NO | Operation mode NC | ||
distance | length | configuration | |||
(See note 1.) | |||||
PNP | E2B-M18KS05-WP-B1 2M | E2B-M18KS05-WP-B2 2M | |||
Short | |||||
NPN | E2B-M18KS05-WP-C1 2M | E2B-M18KS05-WP-C2 2M | |||
Pre-wired | |||||
PNP | E2B-M18LS05-WP-B1 2M | E2B-M18LS05-WP-B2 2M | |||
Long | |||||
NPN | E2B-M18LS05-WP-C1 2M | E2B-M18LS05-WP-C2 2M | |||
Shielded | |||||
5 | mm | PNP | E2B-M18KS05-M1-B1 | E2B-M18KS05-M1-B2 | |
Short | |||||
M12 | NPN | E2B-M18KS05-M1-C1 | E2B-M18KS05-M1-C2 | ||
Connector | PNP | E2B-M18LS05-M1-B1 | E2B-M18LS05-M1-B2 | ||
Long | |||||
NPN | E2B-M18LS05-M1-C1 | E2B-M18LS05-M1-C2 | |||
Single | |||||
PNP | E2B-M18KN10-WP-B1 2M | E2B-M18KN10-WP-B2 2M | |||
Short | |||||
NPN | E2B-M18KN10-WP-C1 2M | E2B-M18KN10-WP-C2 2M | |||
Pre-wired | |||||
PNP | E2B-M18LN10-WP-B1 2M | E2B-M18LN10-WP-B2 2M | |||
Long | |||||
NPN | E2B-M18LN10-WP-C1 2M | E2B-M18LN10-WP-C2 2M | |||
Unshielded | |||||
10 | mm | PNP | E2B-M18KN10-M1-B1 | E2B-M18KN10-M1-B2 | |
Short | |||||
M12 | NPN | E2B-M18KN10-M1-C1 | E2B-M18KN10-M1-C2 | ||
Connector | PNP | E2B-M18LN10-M1-B1 | E2B-M18LN10-M1-B2 | ||
Long | |||||
NPN | E2B-M18LN10-M1-C1 | E2B-M18LN10-M1-C2 | |||
M18 (Brass) | |||||
PNP | E2B-M18KS08-WP-B1 2M | E2B-M18KS08-WP-B2 2M | |||
Short | |||||
NPN | E2B-M18KS08-WP-C1 2M | E2B-M18KS08-WP-C2 2M | |||
Pre-wired | |||||
PNP | E2B-M18LS08-WP-B1 2M | E2B-M18LS08-WP-B2 2M | |||
Long | |||||
Shielded | NPN | E2B-M18LS08-WP-C1 2M | E2B-M18LS08-WP-C2 2M | ||
(See note 2.) | 8 mm | PNP | E2B-M18KS08-M1-B1 | E2B-M18KS08-M1-B2 | |
Short | |||||
M12 | NPN | E2B-M18KS08-M1-C1 | E2B-M18KS08-M1-C2 | ||
Connector | PNP | E2B-M18LS08-M1-B1 | E2B-M18LS08-M1-B2 | ||
Long | |||||
NPN | E2B-M18LS08-M1-C1 | E2B-M18LS08-M1-C2 | |||
Double | |||||
PNP | E2B-M18KN16-WP-B1 2M | E2B-M18KN16-WP-B2 2M | |||
Short | |||||
NPN | E2B-M18KN16-WP-C1 2M | E2B-M18KN16-WP-C2 2M | |||
Pre-wired | |||||
PNP | E2B-M18LN16-WP-B1 2M | E2B-M18LN16-WP-B2 2M | |||
Long | |||||
NPN | E2B-M18LN16-WP-C1 2M | E2B-M18LN16-WP-C2 2M | |||
Unshielded | |||||
16 | mm | PNP | E2B-M18KN16-M1-B1 | E2B-M18KN16-M1-B2 | |
Short | |||||
M12 | NPN | E2B-M18KN16-M1-C1 | E2B-M18KN16-M1-C2 | ||
Connector | PNP | E2B-M18LN16-M1-B1 | E2B-M18LN16-M1-B2 | ||
Long | |||||
NPN | E2B-M18LN16-M1-C1 | E2B-M18LN16-M1-C2 | |||
Connecting | |||||
Sensing | Body | Output | |||
Size | method | Operation mode NO | Operation mode NC | ||
distance | length | configuration | |||
(See note 1.) | |||||
PNP | E2B-M30KS10-WP-B1 2M | E2B-M30KS10-WP-B2 2M | |||
Short | |||||
NPN | E2B-M30KS10-WP-C1 2M | E2B-M30KS10-WP-C2 2M | |||
Pre-wired | |||||
PNP | E2B-M30LS10-WP-B1 2M | E2B-M30LS10-WP-B2 2M | |||
Long | |||||
NPN | E2B-M30LS10-WP-C1 2M | E2B-M30LS10-WP-C2 2M | |||
Shielded | |||||
10 | mm | PNP | E2B-M30KS10-M1-B1 | E2B-M30KS10-M1-B2 | |
Short | |||||
M12 | NPN | E2B-M30KS10-M1-C1 | E2B-M30KS10-M1-C2 | ||
Connector | PNP | E2B-M30LS10-M1-B1 | E2B-M30LS10-M1-B2 | ||
Long | |||||
NPN | E2B-M30LS10-M1-C1 | E2B-M30LS10-M1-C2 | |||
Single | |||||
PNP | E2B-M30KN20-WP-B1 2M | E2B-M30KN20-WP-B2 2M | |||
Short | |||||
NPN | E2B-M30KN20-WP-C1 2M | E2B-M30KN20-WP-C2 2M | |||
Pre-wired | |||||
PNP | E2B-M30LN20-WP-B1 2M | E2B-M30LN20-WP-B2 2M | |||
Long | |||||
NPN | E2B-M30LN20-WP-C1 2M | E2B-M30LN20-WP-C2 2M | |||
Unshielded | |||||
20 | mm | PNP | E2B-M30KN20-M1-B1 | E2B-M30KN20-M1-B2 | |
Short | |||||
M12 | NPN | E2B-M30KN20-M1-C1 | E2B-M30KN20-M1-C2 | ||
M30 (Brass) | |||||
Connector | PNP | E2B-M30LN20-M1-B1 | E2B-M30LN20-M1-B2 | ||
Long | |||||
NPN | E2B-M30LN20-M1-C1 | E2B-M30LN20-M1-C2 | |||
PNP | E2B-M30KS15-WP-B1 2M | E2B-M30KS15-WP-B2 2M | |||
Short | |||||
NPN | E2B-M30KS15-WP-C1 2M | E2B-M30KS15-WP-C2 2M | |||
Pre-wired | |||||
PNP | E2B-M30LS15-WP-B1 2M | E2B-M30LS15-WP-B2 2M | |||
Long | |||||
Shielded | NPN | E2B-M30LS15-WP-C1 2M | E2B-M30LS15-WP-C2 2M | ||
(See note 2.) | 15 mm | PNP | E2B-M30KS15-M1-B1 | E2B-M30KS15-M1-B2 | |
Short | |||||
M12 | NPN | E2B-M30KS15-M1-C1 | E2B-M30KS15-M1-C2 | ||
Double | |||||
Connector | PNP | E2B-M30LS15-M1-B1 | E2B-M30LS15-M1-B2 | ||
Long | |||||
NPN | E2B-M30LS15-M1-C1 | E2B-M30LS15-M1-C2 | |||
PNP | E2B-M30LN30-WP-B1 2M | E2B-M30LN30-WP-B2 2M | |||
Pre-wired Long | |||||
NPN | E2B-M30LN30-WP-C1 2M | E2B-M30LN30-WP-C2 2M | |||
Unshielded | 30 mm | ||||
M12 | PNP | E2B-M30LN30-M1-B1 | E2B-M30LN30-M1-B2 | ||
Long | |||||
Connector | NPN | E2B-M30LN30-M1-C1 | E2B-M30LN30-M1-C2 |
Sensor | I/O Connectors | |||||
Size | Cable | Shape | Cores | Cable length (m) | Model | |
2 | XS3F-M8PVC3S2M | |||||
Straight | ||||||
5 | XS3F-M8PVC3S5M | |||||
PVC | ||||||
2 | XS3F-M8PVC3A2M | |||||
Right-angle | ||||||
5 | XS3F-M8PVC3A5M | |||||
M8 (3-pin) | 3 | |||||
2 | XS3F-M321-302-R | |||||
Straight | ||||||
5 | XS3F-M321-305-R | |||||
PVC Robot | ||||||
2 | XS3F-M322-302-R | |||||
Right-angle | ||||||
5 | XS3F-M322-305-R | |||||
2 | XS2F-M12PVC4S2M | |||||
Straight | ||||||
5 | XS2F-M12PVC4S5M | |||||
PVC | ||||||
2 | XS2F-M12PVC4A2M | |||||
Right-angle | ||||||
5 | XS2F-M12PVC4A5M | |||||
M12 (4-pin) | 4 | |||||
2 | XS2F-D421-D80-F | |||||
Straight | ||||||
5 | XS2F-D421-G80-F | |||||
PVC Robot | ||||||
2 | XS2F-D422-D80-F | |||||
Right-angle | ||||||
5 | XS2F-D422-G80-F |
Ratings and Specifications | ||||
Size | M8 | |||
Sensing | ||||
Single | Double | |||
distance | ||||
Type | Shielded | Unshielded | Shielded | Unshielded |
Item | Model | E2B-S08@S01 | E2B-S08@N02 | E2B-S08@S02 |
Sensing distance | 1.5 mm ± 10% | 2 mm ± 10% | 2 mm ± 10% | 4 mm ± 10% |
Setting distance | 0 to 1.2 mm | 0 to 1.6 mm | 0 to 1.6 mm | 0 to 3.2 mm |
Differential travel | 10% max. of sensing distance | |||
Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) | |||
Standard sensing object | ||||
8 | × 8 × 1 mm | 8 × 8 × 1 mm | 8 × 8 × 1 mm | 12 × 12 × 1 mm |
(mild steel ST37) | ||||
Response frequency (See note 1.) | 2,000 Hz | 1,000 Hz | 1,500 Hz | 1,000 Hz |
Power supply voltage | 10 to 30 VDC. (including 10% ripple (p-p)) | |||
Current consumption | 10 mA max. | |||
-B models: PNP open collector | ||||
Output type | ||||
-C models: NPN open collector | ||||
Load current | ||||
200 | mA max. (30 VDC max.) | |||
Control output | (See note 2.) | |||
Residual voltage | 2 V max. (under load current of 200 mA with cable length of 2 m) | |||
Indicator | Operation indicator (Yellow LED) | |||
Operation mode | -B1/-C1 models: NO | |||
(with sensing object approaching) | -B2/-C2 models: NC | |||
Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, | ||||
Protection circuit | ||||
Short-circuit protection | ||||
Ambient air temperature | Operation and storage : -25 to 70ºC (with no icing or condensation) | |||
Temperature influence | ±10% max. of sensing distance at 23ºC within temperature range of -10 to 55ºC | |||
(See note 2.) | ±15% max. of sensing distance at 23ºC within temperature range of -25 to 70ºC | |||
Ambient humidity | Operation and Storage: 35 to 95% | |||
Voltage influence | ±1% max. of sensing distance in 24 VDC ±15% | |||
Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case | |||
Dielectric strength | 1,000 VAC at 50/60 Hz for 1 min between current-carrying parts and case | |||
Vibration resistance | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y and Z directions | |||
Shock resistance | 500 m/s2, 10 times each in X, Y and Z directions | |||
Standard and listings | (1) IP67 (IEC60529) | (2) EMC (EN60947-5-2) | ||
Pre-wired models (standard is 4 mm dia. PVC cable with length = 2 m, 5 m). | ||||
Connecting method | ||||
Connector models (M8-3pin) | ||||
Weight | Pre-wired model | Short body: Approx. 65 g, Long body: Approx. 65 g | ||
(packaged) | Connector model | Short body: Approx. 20 g, Long body: Approx. 20 g | ||
Case | Stainless steel (1.4305 (W.-No.), SUS 303 (AISI), 2346 (SS).) | |||
Sensing surface | PBT | |||
Material | Cable | Standard cable is 4 mm dia. PVC. | ||
Clamping nut | Brass-nickel plated | |||
Toothed washer | Zinc-plated iron |
