Brand Name: | Cetus International |
---|---|
Model Number: | J1B1211CCD |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Cetus International | Certificate: | / |
---|---|---|---|
Model: | J1B1211CCD | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | RJ45 Ethernet Connector MODULE,100 BASE-TX RJ45 Ethernet Connector,J1B1211CCD |
Product Description

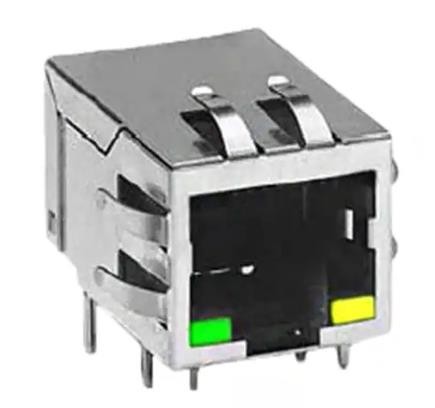

J1B1211CCD RJ45 Ethernet Connector MODULE WITH 10/100 BASE-TX
J1B1211CCD RJ45 eithernet CONNECTOR MODULE WITH 10/100 BASE-TX MAGNETICS AND LEDS
RJ45 eithernet CONNECTOR MODULE WITH 10/100 BASE-TX MAGNETICS AND LEDS Specification :
Category
|
Electronics components- Connectors, Interconnects
|
Other name |
Modular Connectors - Jacks With Magnetics
|
Mfr
|
Cetus
|
Series
|
RJ45 eithernet CONNECTOR |
Package
|
Bulk
|
Part Status
|
Active
|
Connector Type
|
RJ45
|
Number of Ports
|
1
|
Number of Rows
|
1
|
Applications
|
10/100 Base-T, AutoMDIX
|
Mounting Type
|
Through Hole
|
Orientation
|
90° Angle (Right)
|
Termination
|
Solder
|
Height Above Board
|
0.526" (13.36mm)
|
LED Color
|
Green - Yellow
|
Number of Cores per Jack
|
4
|
Shielding
|
Shielded, EMI Finger
|
Features
|
Board Guide
|
Tab Direction
|
Down
|
Contact Material
|
Phosphor Brass
|
Contact Finish
|
Gold
|
Operating Temperature
|
-40°C ~ 85°C
|
Contact Finish Thickness
|
6.00µin (0.152µm)
|
Shield Material
|
Brass
|
Housing Material
|
Thermoplastic
|
Base Product Number
|
J1B1211
|
Environmental & Export Classifications
ATTRIBUTE | DESCRIPTION |
---|---|
RoHS Status | ROHS3 Compliant |
Moisture Sensitivity Level (MSL) | Not Applicable |
ECCN | EAR99 |
HTSUS | 8536.69.4040 |
