Brand Name: | WIZnet |
---|---|
Model Number: | W5500 |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | WIZnet | Certificate: | / |
---|---|---|---|
Model: | W5500 | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | Single Chip WIZnet Ethernet,CTLR WIZnet Ethernet,W5500 |
Product Description

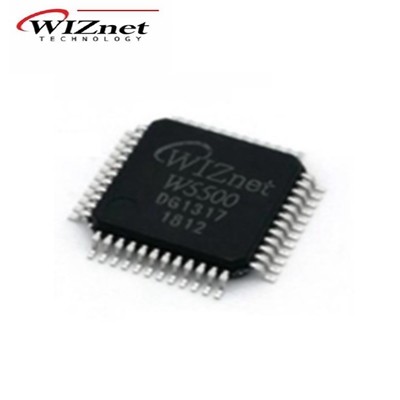

W5500 WIZnet Ethernet CTLR Single Chip ic electronics components
Ethernet CTLR Single Chip 10Mbps/100Mbps 3.3V 48-Pin LQFP IC
Environmental & Export Classifications
ATTRIBUTE | DESCRIPTION |
---|---|
RoHS Status | ROHS3 Compliant |
Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
REACH Status | REACH Unaffected |
ECCN | 3A991A2 |
HTSUS | 8542.31.0001 |
Specification :
Part Number | W5500 |
EU RoHS | Compliant |
ECCN (US) | 5A991.b.4.a |
Part Status | Active |
HTS | 8542.31.00.01 |
Automotive | Unknown |
PPAP | Unknown |
Product Category | Single Chip ic |
Physical Network Type | 10BASE-T|100BASE-TX |
Ethernet Speed (Mbps) | 10|100 |
Communication Mode | Full Duplex|Half Duplex |
Minimum Operating Supply Voltage (V) | 2.97 |
Typical Operating Supply Voltage (V) | 3.3 |
Maximum Operating Supply Voltage (V) | 3.63 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
DMA Support | No |
Auto-Negotiation | Yes |
Packaging | Reel |
Supplier Package | LQFP |
Pin Count | 48 |
Standard Package Name | QFP |
Mounting | Surface Mount |
Package Height | 1.4 |
Package Length | 7 |
Package Width | 7 |
PCB changed | 48 |
Lead Shape | Gull-wing |
Images:
