Brand Name: | Infineon Technologies/International Rectifier IOR |
---|---|
Model Number: | IRLR3915TRPBF |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Infineon Technologies/International Rectifier IOR | Certificate: | / |
---|---|---|---|
Model: | IRLR3915TRPBF | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | Infineon HEXFET Power MOSFET,HEXFET Power MOSFET N Channel,IRLR3915TRPBF |
Product Description

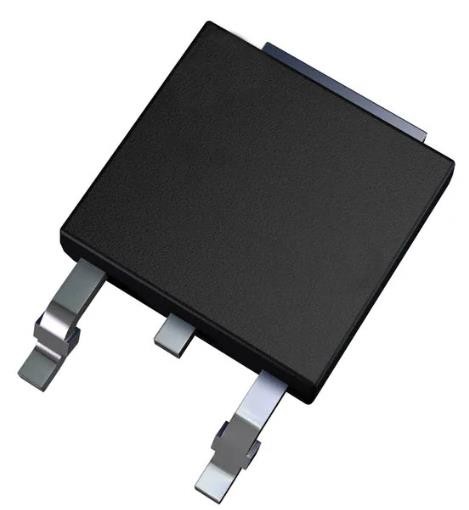

IRLR3915TRPBF Infineon Technologies/International Rectifier IOR HEXFET MOSFET N-Channel 55V 30A DPAK Discrete Semiconductor Products
N-Channel 55 V 30A (Tc) 120W (Tc) Surface Mount D-Pak
Description
This HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area.
Additional features of this product are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in a wide variety of applications.
Features :
Advanced Process Technology Ultra Low On-Resistance 175°C Operating Temperature Fast Switching Repetitive Avalanche Allowed up to Tjmax D-Pak IRLR3915PbF I-Pak IRLU3915PbF Lea
Part number | IRLR3915TRPBF |
Base part number | IRLR3915 |
EU RoHS | Compliant with Exemption |
ECCN (US) | EAR99 |
Part Status | Active |
HTS | 8541.29.00.95 |
Category
|
Discrete Semiconductor Products
|
Transistors - FETs, MOSFETs - Single
|
|
Mfr
|
Infineon Technologies
|
Series
|
HEXFET®
|
Package
|
Tape & Reel (TR)
|
Part Status
|
Active
|
FET Type
|
N-Channel
|
Technology
|
MOSFET (Metal Oxide)
|
Drain to Source Voltage (Vdss)
|
55 V
|
Current - Continuous Drain (Id) @ 25°C
|
30A (Tc)
|
Drive Voltage (Max Rds On, Min Rds On)
|
5V, 10V
|
Rds On (Max) @ Id, Vgs
|
14mOhm @ 30A, 10V
|
Vgs(th) (Max) @ Id
|
3V @ 250µA
|
Gate Charge (Qg) (Max) @ Vgs
|
92 nC @ 10 V
|
Vgs (Max)
|
±16V
|
Input Capacitance (Ciss) (Max) @ Vds
|
1870 pF @ 25 V
|
FET Feature
|
-
|
Power Dissipation (Max)
|
120W (Tc)
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
Mounting Type
|
Surface Mount
|
Supplier Device Package
|
D-Pak
|
Package / Case
|
TO-252-3, DPak (2 Leads + Tab), SC-63
|
Base Product Number
|
IRLR3915
|
