Brand Name: | INFINEON |
---|---|
Model Number: | IRF1404PBF IRF1404ZPBF |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | INFINEON | Certificate: | / |
---|---|---|---|
Model: | IRF1404PBF IRF1404ZPBF | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | 06N90E Discrete Semiconductor Devices,FMV06N90E Discrete Semiconductor Devices,FMH06N90E |
Product Description
06N90E FMV06N90E FMH06N90E Discrete Semiconductors 900V 6A

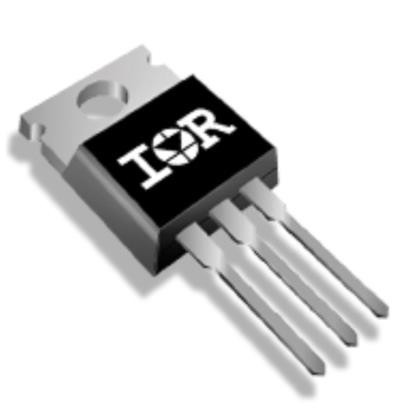

IRF1404 IRF1404PBF IRF1404Z IRF1404ZPBF 40V Single N-Channel Power MOSFET in a TO-220 package
About IRF1404PBF:
Summary of Features
IRF1404 40V Single N-Channel Power MOSFET in a TO-220 package
Planar cell structure for wide SOA
Optimized for broadest availability from distribution partners
Product qualification according to JEDEC standard
Industry standard surface-mount power package
High-current rating
Benefits :
Increased ruggedness
Multi-vendor compatibility
Industry standard qualification level
Standard pinout allows for drop in replacement
High current carrying capability
Parametrics | IRF1404 |
ID (@25°C) max | 202 A |
Mounting | THT |
Ptot max | 200 W |
Package | TO-220 |
Polarity | N |
QG (typ @10V) | 131 nC |
Qgd | 42 nC |
RDS (on) (@10V) max | 4 mΩ |
RthJC max | 0.75 K/W |
Special Features | Wide SOA |
Tj max | 175 °C |
VDS max | 40 V |
VGS(th) min max | 3 V 2 V 4 V |
VGS max | 20 V |
