Brand Name: | Nexperia USA Inc |
---|---|
Model Number: | PBHV8540X,115 |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Nexperia USA Inc | Certificate: | / |
---|---|---|---|
Model: | PBHV8540X,115 | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | Nexperia Discrete Semiconductor Devices,PBHV8540 Discrete Semiconductor Devices,PBHV8540X |
Product Description
PBHV8540X PBHV8540 Nexperia Bipolar BJT Transistor Discrete Semiconductors
PBHV8540X PBHV8540 Nexperia Bipolar (BJT) Transistor 500V 0.5 A NPN A NPN high-voltage low VCEsat (BISS) transistor
Discrete Semiconductor Products-A NPN high-voltage low VCEsat (BISS) transistor
Description:
NPN high-voltage low VCEsat Breakthrough In Small Signal (BISS) transistor in a SOT89 (SC-62) medium power and flat lead Surface-Mounted Device (SMD) plastic package. PNP complement: PBHV9040X.
Application:
• LED driver for LED chain module
• LCD backlighting
• Automotive motor management
• Hook switch for wired telecom
• Switch Mode Power Supply (SMPS)
Features :
• High voltage
• Low collector-emitter saturation voltage VCEsat
• High collector current capability IC and ICM
• High collector current gain hFE at high IC
• AEC-Q101 qualified
Name Description Version
PBHV8540X SOT89 plastic surface-mounted package; die pad for good heat transfer; 3 leads
Category
|
Discrete Semiconductor Products
|
Transistors - Bipolar (BJT) - Single
|
|
Mfr
|
Nexperia USA Inc.
|
Part Status
|
Active
|
Transistor Type
|
NPN
|
Current - Collector (Ic) (Max)
|
500 mA
|
Voltage - Collector Emitter Breakdown (Max)
|
400 V
|
Vce Saturation (Max) @ Ib, Ic
|
250mV @ 60mA, 300mA
|
Current - Collector Cutoff (Max)
|
100nA
|
DC Current Gain (hFE) (Min) @ Ic, Vce
|
100 @ 50mA, 10V
|
Power - Max
|
520 mW
|
Frequency - Transition
|
30MHz
|
Operating Temperature
|
150°C (TJ)
|
Mounting Type
|
Surface Mount
|
Package / Case
|
TO-243AA
|
Supplier Device Package
|
SOT-89
|
Base Product Number
|
PBHV8540
|
Part number | PBHV8540X,115 |
EU RoHS | Compliant with Exemption |
ECCN (US) | EAR99 |
Part Status | Active |
HTS | 8541.29.00.95 |

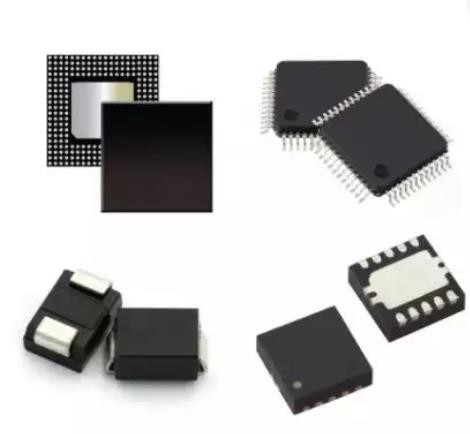

Images:
