Brand Name: | Infineon Technoctifier Ilogies/International ReOR |
---|---|
Model Number: | IHW30N160R2FKSA1 |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Infineon Technologies/International Rectifier IOR | Certificate: | / |
---|---|---|---|
Model: | IHW30N160R2FKSA1 | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | H30R1602 Discrete Semiconductor Devices,IGBT Power Discrete Semiconductor Devices,IHW30N160R2 |
Product Description
IHW30N160R2 IGBTs Transistors H30R1602 Soft Switching Series Power Semiconductors IC IHW30N160R2FKSA1 Soft Switching Series
Applications:
• Inductive Cooking
• Soft Switching Applications
Description:
TrenchStop® Reverse Conducting (RC-)IGBT with monolithic body diode
Features:
• Powerful monolithic Body Diode with very low forward voltage
• Body diode clamps negative voltages
• Trench and Fieldstop technology for 1600 V applications offers :
- very tight parameter distribution
- high ruggedness, temperature stable behavior
• NPT technology offers easy parallel switching capability due to
positive temperature coefficient in VCE(sat)
• Low EMI
• Qualified according to JEDEC1
for target applications
• Pb-free lead plating; RoHS compliant

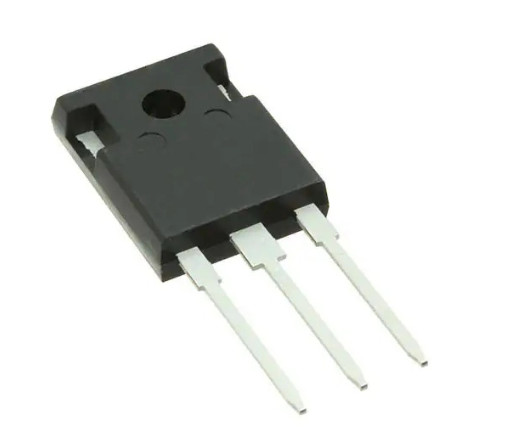

Specification:IGBT NPT, Trench Field Stop 1600 V 60 A 312 W Through Hole PG-TO247-3-1
Part number | IHW30N160R2 |
Category | Discrete Semiconductor Products |
Transistors - IGBTs - Single | |
Series | TrenchStop® |
Package | Tube |
IGBT Type | NPT, Trench Field Stop |
Voltage - Collector Emitter Breakdown (Max) | 1600 V |
Current - Collector (Ic) (Max) | 60 A |
Current - Collector Pulsed (Icm) | 90 A |
Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 30A |
Power - Max | 312 W |
Switching Energy | 4.37mJ |
Input Type | Standard |
Gate Charge | 94 nC |
Td (on/off) @ 25°C | -/525ns |
Test Condition | 600V, 30A, 10Ohm, 15V |
Operating Temperature | -40°C ~ 175°C (TJ) |
Mounting Type | Through Hole |
Package / Case | TO-247-3 |
Supplier Device Package | PG-TO247-3-1 |
