Brand Name: | ROHM Semiconductor |
---|---|
Model Number: | 1SS26(C3) |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | ROHM Semiconductor | Certificate: | / |
---|---|---|---|
Model: | 1SS26(C3) | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | 1SS226 Switching Diodes,Switching Diodes Epitaxial Planar,1SS226TE85LF |
Product Description

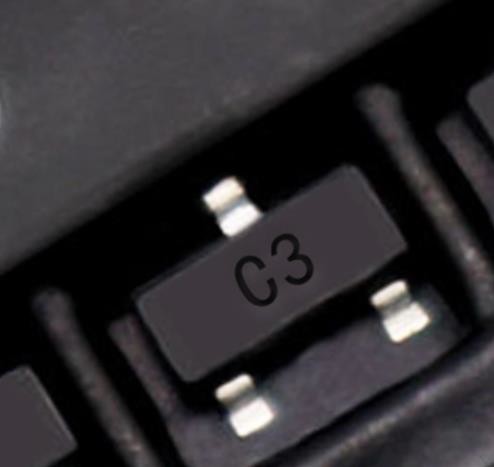

1SS226 Switching Diodes Silicon Epitaxial Planar For Ultra High Speed Switching
1. Applications
• Ultra-High-Speed Switching
2. Features
(1) AEC-Q101 qualified
Feature | High-speed switching |
---|---|
Internal Connection | Series |
Number of Circuits | 2 |
AEC-Q101 | Qualified(*) |
RoHS Compatible Product(s) (#) | Available |
Lead Finish | Tin-Silver-Copper |
Max Processing Temp | 260 |
Mounting | Surface Mount |
Operating Temperature | -55 to 125 °C |
Peak Average Forward Current | 0.1 A |
Peak Forward Voltage | 1.2 V |
Peak Non-Repetitive Surge Current | 2 A |
Peak Repetitive Reverse Voltage | 85 V |
Peak Reverse Current | 0.5 uA |
Peak Reverse Recovery Time | 4 ns |
Pin Count | 3 |
Product Dimensions | 2.9 x 1.5 x 1.1 mm |
Supplier Package | S-Mini |
Type | Switching Diode |
