Brand Name: | Texas Instruments |
---|---|
Model Number: | TPS2400DBVT |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Texas Instruments | Certificate: | / |
---|---|---|---|
Model: | TPS2400DBVT | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | 69 pct Display Driver IC,TPS2400DBVT Display Driver IC,1mA automotive led driver ic |

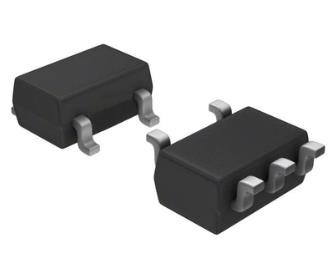

Display Driver IC Texas Instruments/TI TPS2400DBVT
ECAD Module | PCB Symbol,Footprint & 3D Model |
Supply and Demand Status | Limited |
Fake Threat In the Open Market | 69 pct. |
Popularity | Medium |
Win Source Part Number | 1272265-TPS2400DBVT |
MSL Level | 2 (1 Year) |
Manufacturer Pack Quantity | 1 |
Family Part Number | TPS2400 |
Supplier Device Package | SOT-23-5 |
Manufacturer Package | SC-74A, SOT-753 |
Mounting Style | SMD |
Temperature Range - Operating | -40°C ~ 85°C |
Supply Current | 1mA |
Supply Voltage (V) | 3.1V ~ 6.8V |
Packaging | Reel |
Manufacturer | Texas Instruments |
Categories | Integrated Circuits |
Applications | Overvoltage Protection Controller |
The TPS2400 overvoltage protection controller is used with an external N-channel MOSFET to isolate sensitive electronics from destructive voltage spikes and surges. It is specifically designed to prevent large voltage transients associated with automotive environments (load dump) from damaging sensitive circuitry. When potentially damaging voltage levels are detected by the TPS2400 the supply is disconnected from the load before any damage can occur.
Internal circuitry includes a trimmed band-gap reference, oscillator, Zener diode, charge pump, comparator, and control logic. The TPS2400 device is designed for use with an external N-channel MOSFET, which are readily available in a wide variety of voltages.
