Brand Name: | Keystone Electronics |
---|---|
Model Number: | 5005 5006 5016 |
Minimum Order Quantity: | 1 piece |
Delivery Time: | 2~8 workdays |
Payment Terms: | T/T |
Brand: | Keystone Electronics | Certificate: | / |
---|---|---|---|
Model: | 5005 5006 5016 | MOQ: | 1 Pc |
Price: | Negotiated | Delivery: | 2~8 Workdays |
Payment: | T/T | ||
High Light: | 5005 Keystone Electronics,5006 Keystone Electronics,5016 Keystone Electronics |
Product Description

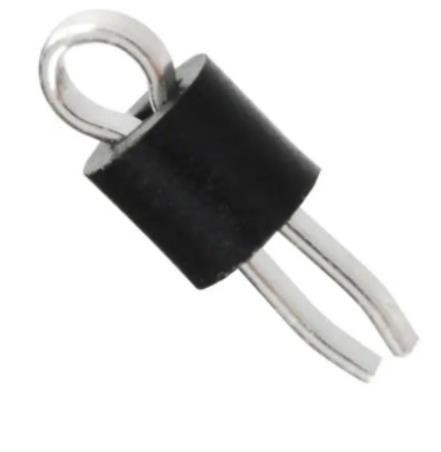

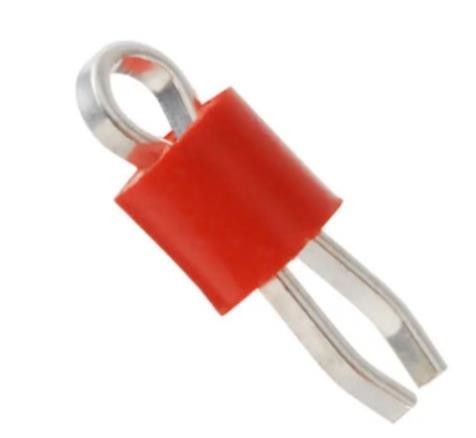

Thm Thru Hole Mount Test Points Color Keyed 5005 5006 5016 Keystone Electronics
5005 5006 5016 Keystone Electronics THM THRU HOLE MOUNT TEST POINTS COLOR KEYED
Description:
• Color keyed for visibility and quick identification • Economical choice for PC test point terminations • Snap-fit mounting provides positive retention for wave soldering • Wire form loop for safe, non-slip testing • Space saving, ultra low and low profile designs • High profile design for difficult to reach applications • Suitable for high density packaging on .062 (1.57) and .093 (2.36) PC boards • Practical replacement for wire-wrap posts and turrets • Secure grip for J hooks, EZ hooks, grabbers, alligator clips, tips or probes • High temperature nylon base ideal for reflow soldering • Ideal for reliable production testing and field service troubleshooting
Category
|
Test and Measurement
|
TEST POINTS.pdf |
Test Points
|
Mfr
|
Keystone Electronics
|
Series
|
THM
|
Package
|
Bulk
|
Product Status
|
Active
|
Type
|
PC Test Point, Compact
|
Mounting Type
|
0.063" (1.60mm) Hole Diameter
|
Color
|
Red
|
Size / Dimension
|
0.125" Dia x 0.220" L (3.18mm x 5.59mm)
|
Height
|
-
|
Plating
|
Silver
|
Material - Insulation
|
Nylon 46, UL 94V-0
|
Material - Body
|
Phosphor Bronze
|
Specifications:
Terminal: .015 (.38) × .032 (.81) Phosphor Bronze, Silver Plate
Base: Nylon 46, UL Rated 94V-0
Mtg. Hole: .063 (1.6) Diameter
Part number | Base Color |
5000 | Red |
5001 | BLACK |
5002 | WHITE |
5003 | ORANGE |
5004 | ORANGE |
5115 | BROWN |
5116 | GREEN |
5117 | BLUE |
5118 | GREY |
5119 | PURPLE |
