| Brand Name: | Bosch |
|---|---|
| Model Number: | BMA400 |
| Minimum Order Quantity: | 1000 |
| Price: | Contact me for the latest prices |
| Packaging Details: | Carton box |
| Payment Terms: | D/A, D/P, T/T, Western Union |
| Supply Ability: | 100K Pices/day |
| High Light: | LGA12 IC Electronic Components,Bosch IC Electronic Components,BMA400 |
||
|---|---|---|---|
Product Description

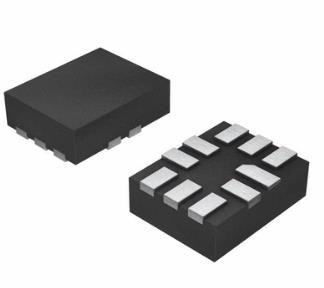

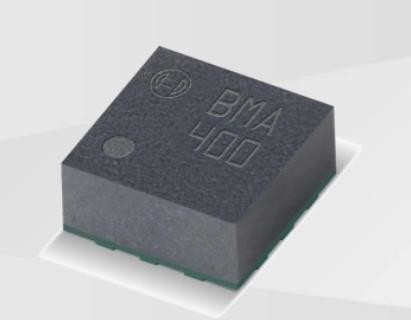

BMA400 Bosch Accelerometer Triple LGA12 IC Electronics Components
BMA400 Bosch Accelerometer Triple LGA12 IC Electronics components ±2g/±4g/±8g/±16g 2.5V/3.3V
BMA400 Bosch Accelerometer Triple LGA12 IC– Basic Description :
12 bit, digital, triaxial acceleration sensor with smart on-chip motion and position-triggered interrupt features.
BMA400 Bosch Accelerometer Triple LGA12 IC Key features:
Small package size LGA package (12 pins), footprint 2mm x 2mm, height 0.95 mm
Ultra-low power Low current consumption of data acquisition without compromising on performance (< 14.5 µA with highest performance)
Programmable functionality Acceleration ranges ±2g/±4g/±8g/±16g Low-pass filter bandwidths = 0.48*ODR up to a max. output data read out of 800Hz
On-chip FIFO Integrated FIFO on sensor with 1 KB
On-chip interrupt features Auto-low power/Auto wakeup Activity/In-activity Step Counter (overall device current consumption 4µA) Activity Recognition (Walking, Running, Standing still) Orientation detection Tap/double tap
Digital interface SPI (4-wire, 3-wire), I²C, 2 interrupt pins VDDIO voltage range: 1.2V to 3.6V
RoHS compliant, halogen-free
BMA400 Bosch Sensortec GmbH
Typical applications :
Step Counting with ultra-low current consumption for extensive battery lifetime
Advanced system power management for mobile applications and (smart) watches
Fitness applications / Activity Tracking
Tap / double tap sensing
Drop detection for warranty logging
Window/door measurements for climate control and alarm systems
IoT applications powered by coin cell driven batteries, requiring <1uA and auto-wakeup functionality
Bosch Sensortec GmbH Electronic components Module IC BMA400 Specification :
| Part Number | BMA400-3-axes ultra-low power accelerometer ic |
| Category | Electronic components |
| Manufacturer: | Bosch Sensortec |
| Product Category: | Accelerometer IC/ Module IC |
| RoHS: | YES |
| Series: | BMA |
| Type: | Triple |
| Size | 2*2*0.95 |
| Maximum Operating Supply Voltage (V) | 3.6V |
| Mounting Style: | Surface Mount |
